Constructed to cyclonic region specifications (AS/NZS 1170.2 - 2002)
SOUND AND SECURE
Roller Shutters are a proven versatile style of door, ideal for cyclonic areas. They are available with smooth manual or power operation in either galvanised or the full colour range of powder coated finishes.
They can be sized to suit openings up to a large 49m .

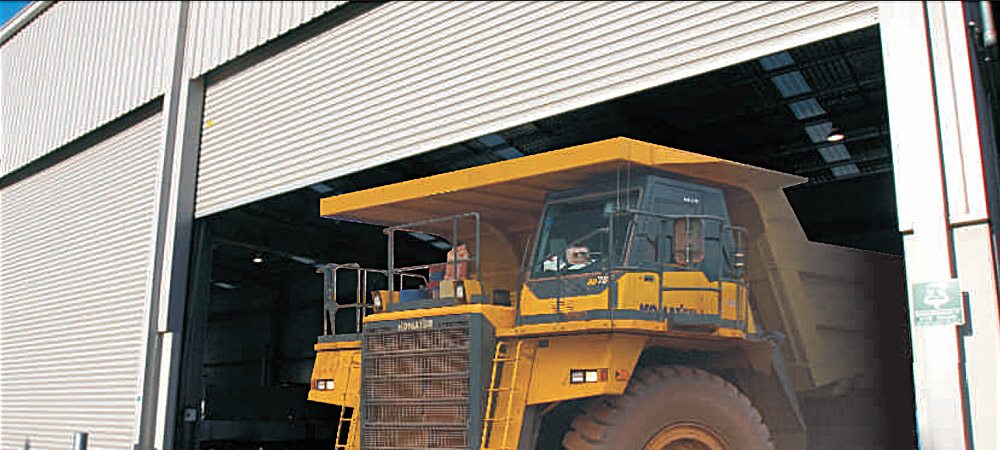

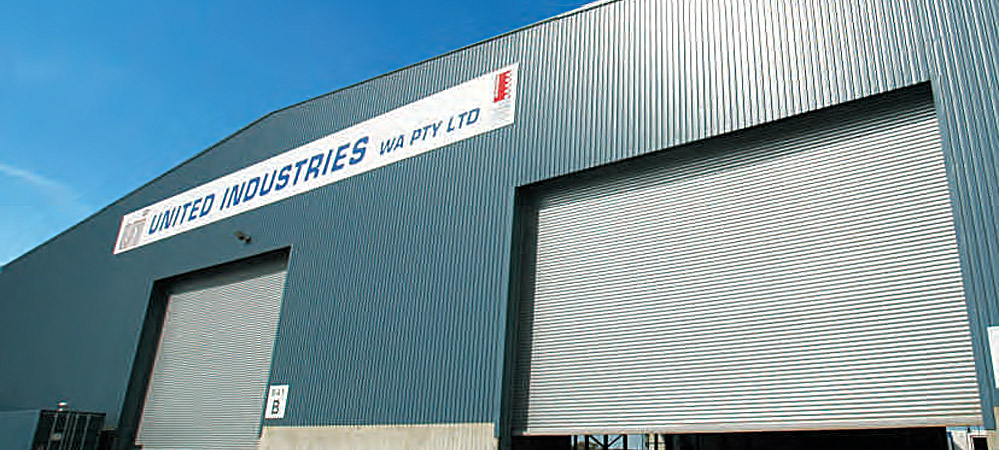

Roller shutters are ideal for both external and internal installations in most building projects including warehouses, factories, shopping centres, recreation and sporting centres, mining and heavy industry workshop facilities.
CURTAIN
The curtain is manufactured from interlocking, roll-formed, steel slats. The ends of each alternate slat are fitted with hardened cast iron end clips, designed to stop lateral movement and provide a smooth, operation. Curtain as standard is windlocked every slat.
BOTTOM RAIL
The bottom rail of the shutter is extruded aluminium section. A weather seal is fitted as standard to minimise the entry of dust or dirt.
DRUM
The drum is manufactured from mild steel tube. The drum houses bearings counter balancing helical torsion springs, capable of producing sufficient torque to ensure ease of operation of the curtain from any position. With 1.0mm or 1.2mm steel slats with cast windlock clips every slat. Optional powder coat colours.
HEAVY DUTY GUIDE ASSEMBLY
90mm deep with wall thickness of 2.95mm with formed lock rail running full length of guide to secure wind lock clips with patent pending (AU2012261562) cyclonic guide clamp.
