12.7mm Aluminium tubes
ECONOMICAL, LIGHTWEIGHT AND STRONG
Anvil Doors Roller Grilles made from high grade aluminium are available in anodised and powder coated finishes. They secure both small and large openings.

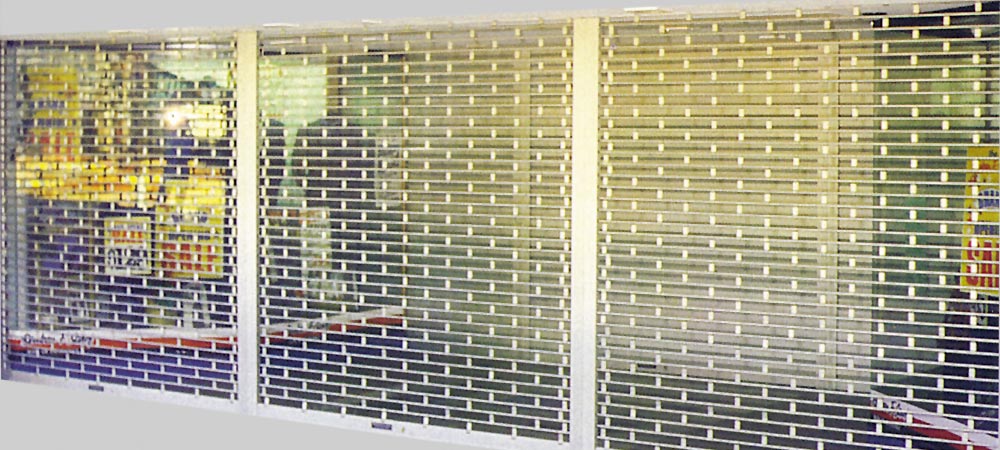

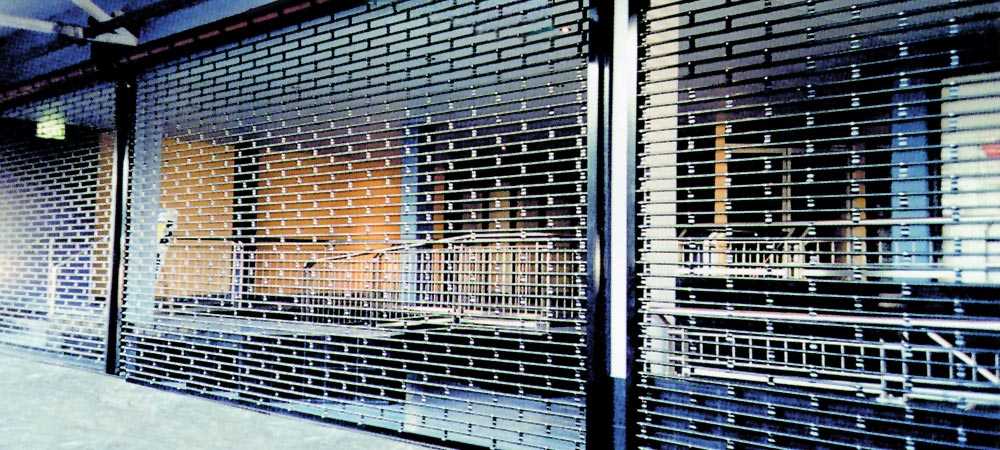

They have opening sizes of 4.0m high x 3.6m wide and are constructed of 12.7mm aluminium tubes. They are ideally suited for arcade entrances, shops, car parks, ventilation security. Allowing maximum airflow and visibility without sacrificing strength and security.
CURTAIN:

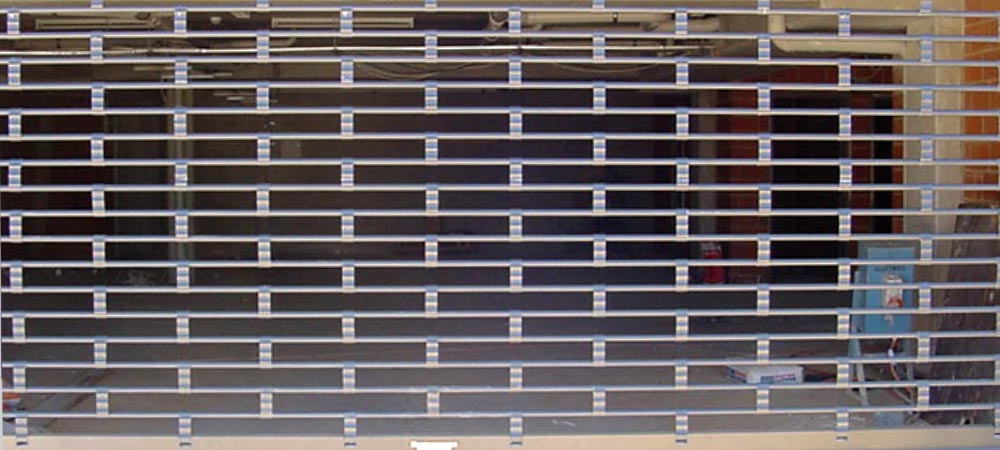

12mm Grille is constructed of 12.7mm aluminium tubes at 6Omm centres, connected with 77 x 25mm aluminium links spaced at 300mm centres to form a brick pattern.
SIDE GUIDE
5Omm x 33mm extruded aluminium with schlecal nylofelt buffer for quiet operation.
BOTTOM RAIL
9Omm x 48mm extruded aluminium section incorporating locking device and concealed locking rods and optional PVC buffer.
BRACKETS
Manufactured from 9Omm x 4Omm mild steel.
LOCKING
Shall be centrally mounted, two way Mortice Key Lock or sliding shoot bolt locking mounted within the bottom rail.
Optional waist high locking is also available.
OPERATION
Designed for manual hand operation as standard, dependant on size, chain & motorisation is optional as requested or required.
FINISH
Available in anodised & powder coated colours.
